100R Series

Representative photo not exact

100R Series

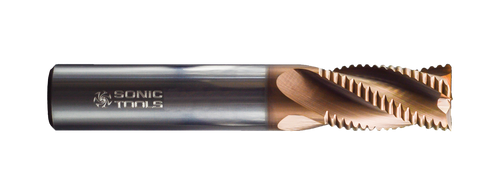

Tool 100Ri375

Roughing at 3/8 diameter means finding the line between aggressive cuts and tool life. The 100Ri375 runs that line without crossing it. This 4-flute solid carbide rougher handles steel, iron, titanium, and nickel alloys through chipbreaker geometry that fragments material before evacuation becomes a problem.

  • The uncoated substrate keeps things simple.
  • No coating means no delamination concerns when interrupted cuts generate thermal cycling.
  • The 0.006" chamfer reinforces the cutting edge where impact loads concentrate - small enough to maintain sharpness, large enough to prevent microchipping on entry.
  • Four flutes balance metal removal rate against chip clearance in the smaller envelope.
  • The surface it leaves isn't finished.
  • That's what the next tool is for.
  • This one removes material fast without drama.

Currently Out of Stock; Send Us a Message to Request Part & Quantity!

steel

iron

titanium

stainless steel

nickel alloy

Milling Style

Side

Product Specs

  • Cutting Diameter (D0 -0.0004"/-0.0012")

    0.375

  • Cutting Length (L0 +0.04")

    0.75

  • Shank Diameter (D1 h6)

    0.375

  • Overall Length (L1 +/-0.08")

    2.5

  • Neck Length (L2 +0.04")

    N/A

  • Chamfer (C1 x 45˚ +/-0.001")

    0.006

  • Flutes (Z)

    4

  • Coating

    Uncoated

Speeds & Feeds

Diameter (D0 -0.0004"/-0.0012"): 0.375"
