Every standard Sonic tool carries a coating code.
Here's how to read it.
100i500A
TiAlSiNHardened steels, nickel and titanium alloys
930i0812B
AlTiNSteel, titanium alloys, Inconel
200i500M015C
TiB2Aluminum and other non-ferrous materialsOur stocked tools come in three coatings, each matched to the material the series is built for.

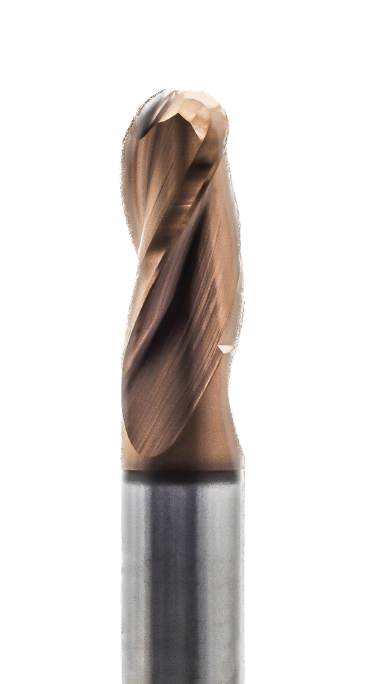

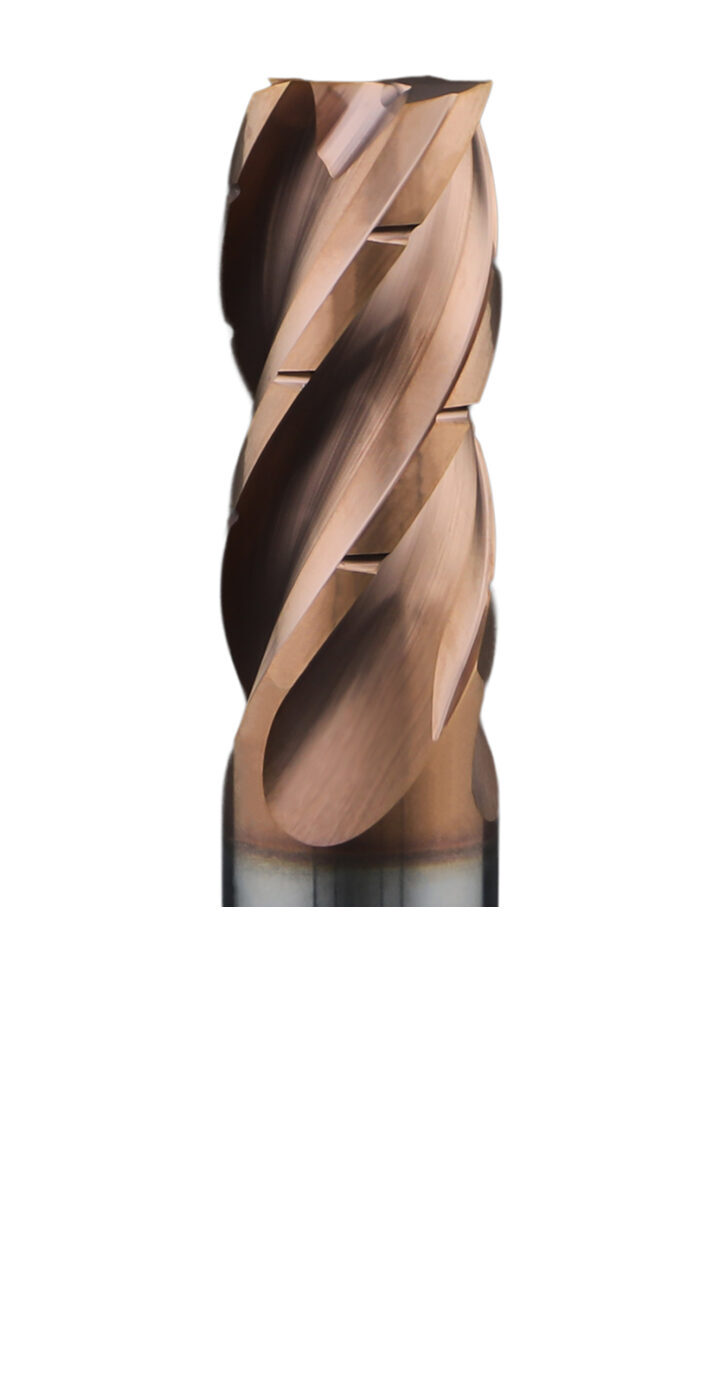

Part no. ends in A
Run it in
Hardened and high-strength steels, nickel-based alloys, titanium alloys
Built for heat. It holds up to 1000°C, and its low-friction surface cuts down wear.
Stocked on
Every series in our steel, iron, titanium and nickel alloy line.
Shop steel and alloy end mills

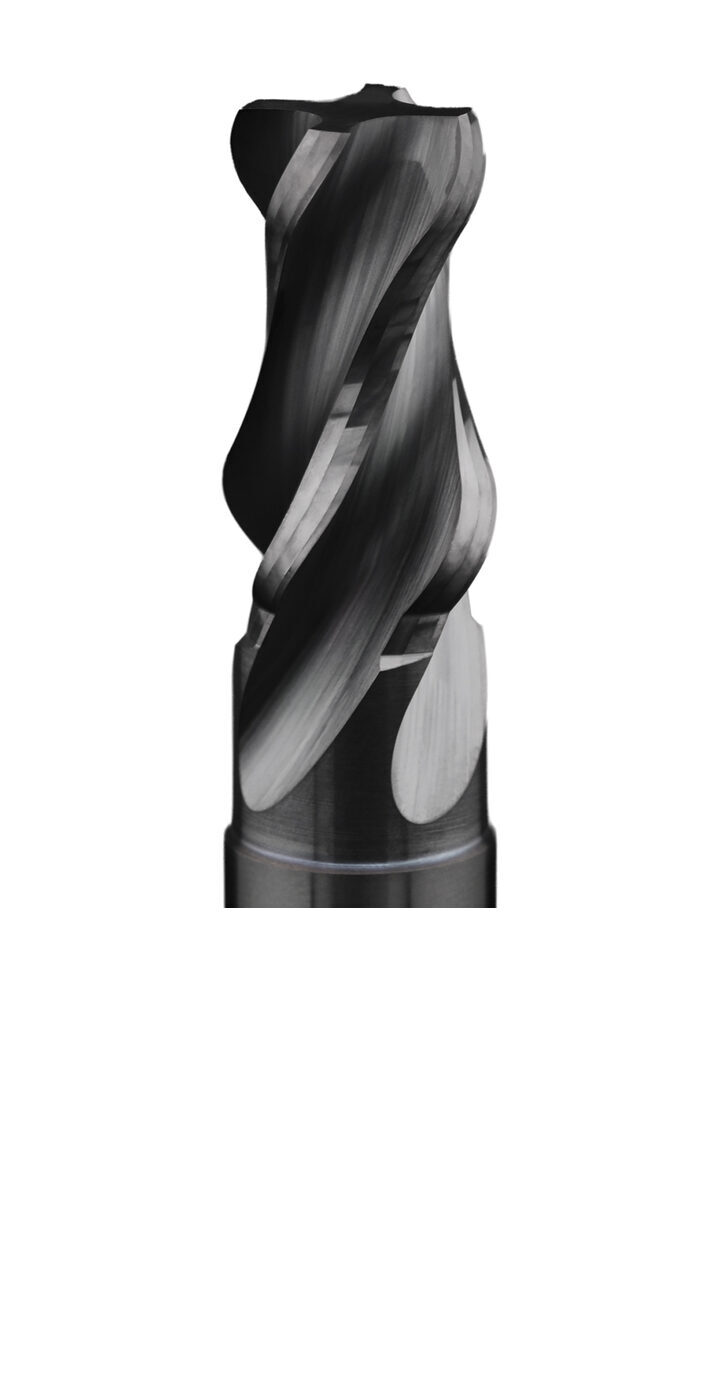

Part no. ends in B
Run it in
Steel, titanium alloys, Inconel
It handles high temperatures, cuts down wear and extends tool life. Keep it out of aluminum.
Stocked on
The ferrous version of every shape and profile mill we stock: chamfer, double angle, dovetail, engraving, corner rounding, spherical and keyseat cutters.
Shop shape and profile mills

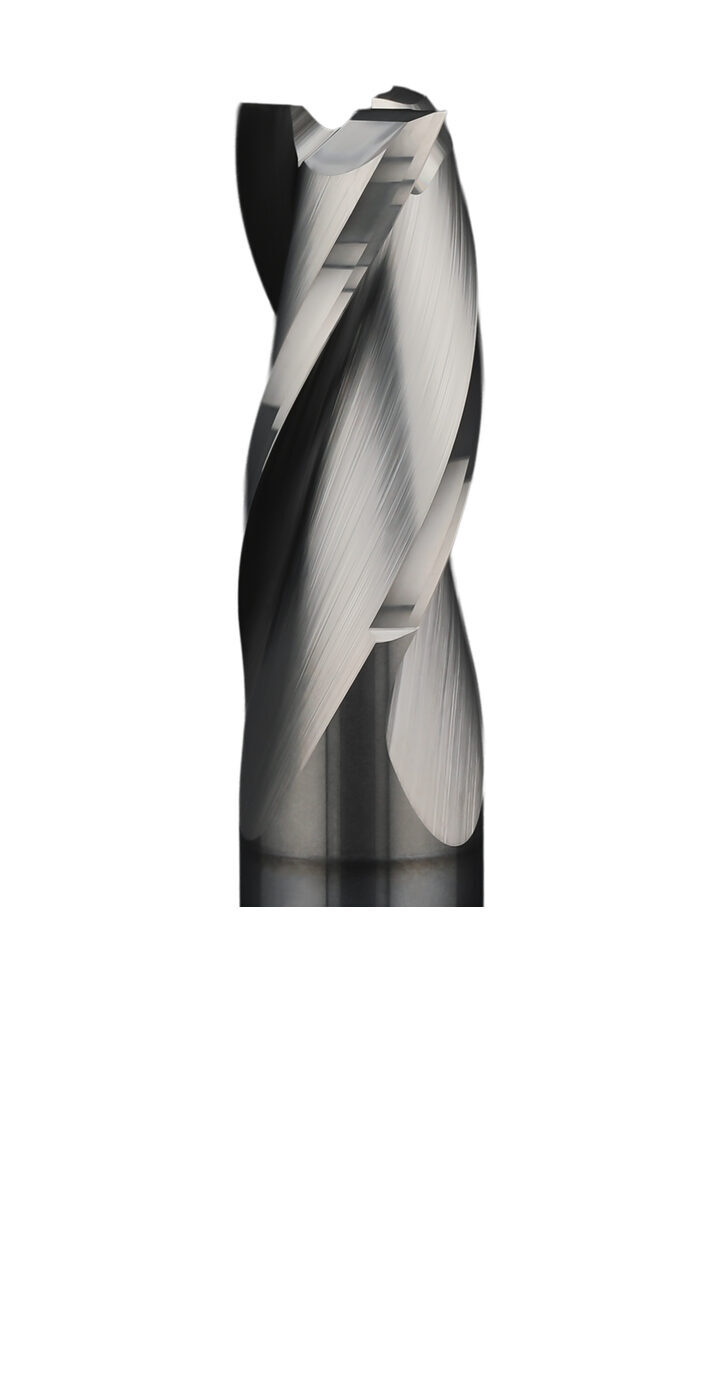

Part no. ends in C
Run it in
Aluminum and other non-ferrous materials
Aluminum doesn't stick to it, so the tool can run higher speeds and feeds.
Stocked on
Every aluminum series, plus the non-ferrous version of every shape and profile mill we stock.

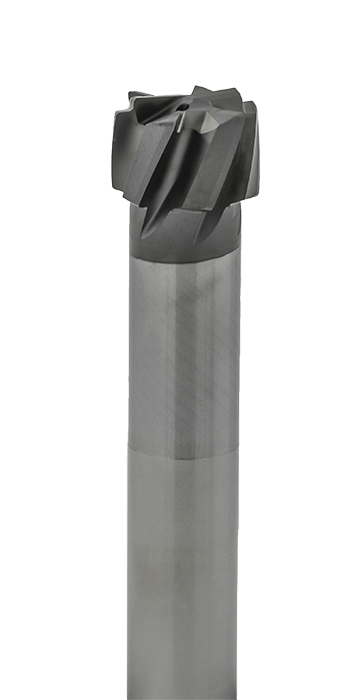

Shop aluminum end millsFor abrasive materials. A CVD diamond layer resists wear, runs with low friction and carries heat away before it builds up.
For wear resistance in high-speed machining and drilling of hard materials.
Most tools are stocked coated. Uncoated versions are available with rapid delivery.
Need a coating that isn't listed here? Ask us.
When a coated tool comes in for reconditioning, it goes back out recoated in one of four coatings: TiAlSiN, AlTiN, TiB2 or AlCrN.
Diamond isn't offered on reconditioned tools. If you need a coating outside those four, ask us.
Send us the material and the operation, or call and talk it through.
