100 Series

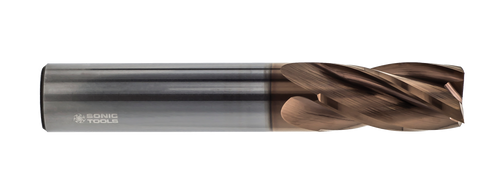

Tool 100m100LA

Large end mills amplify every imperfection. Tool deflection, spindle runout, and uneven chip evacuation all scale up with diameter, turning minor issues into scrapped parts.

The 100m100LA addresses these realities through geometry designed for control.
Four flutes at 10" diameter create shorter, more manageable chip segments that clear consistently from the cut zone.
The R0.15" corner radius eliminates the stress concentrations that cause edge chipping on sharp corners, extending tool life in interrupted cuts and entry/exit conditions common in steel and iron work.
TiAlSiN coating runs cooler than uncoated carbide while maintaining edge sharpness longer in titanium and nickel alloys.
Heat dissipation becomes critical at this scale - the coating keeps cutting temperatures stable as feeds increase to maintain productivity on heavy roughing passes.
