Representative photo not exact

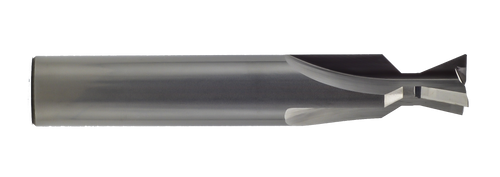

Tool 931i0812B
Small dovetail profiles demand precision without sacrificing edge strength. The 931i0812B delivers a 0.125" cutting diameter with 30-degree included angle for tight workholding slots and undercut features where space is limited.
- The R0.005" corner radius at the dovetail root reduces stress concentration in fatigue-critical applications while strengthening the cutting edge against chipping in interrupted cuts.
- Two flutes balance chip evacuation with rigidity on the 0.0787" neck diameter.
- AlTiN coating extends tool life in steel and aluminum by maintaining sharp cutting edges at higher temperatures.
- The coating's aluminum oxide layer forms a thermal barrier that keeps the carbide substrate cooler during extended cuts.
- Designed for steel, aluminum, and most machinable metals in both roughing and finishing operations.
Product Specs
-
Included Angle (A1 +/-0.5°)
30°
-
Cutting Diameter (D0 -0.002")
0.125
-
Cutting Length (L0)
0.092
-
Shank Diameter (D1 h6)
0.125
-
Overall Length (L1 +/-0.08")
2
-
Neck Diameter (D2 -0.002"/-0.006")
0.0787
-
Neck Length (L2 +0.04")
0.125
-
Radius (R0 +/-0.001")
0.005
-
Flutes (Z)
2
-
Coating
AlTiN
Industries
Aerospace
Automotive
Biomedical
Firearms
Machining
Microelectronics
