Carbide End Mills 101: Tool Types, Geometry, and Selection Tips

Ever wonder why one tool sings and another screams? The difference isn't usually luck, it's geometry. Think all end mills are the same? So did the guy who chipped three before lunch. Let's ensure your setup is maximized and not jeaopardized.

---

The machining world is a vast, detailed, and often confusing place to find yourself, especially if you're new to it. Whether you've just stepped into this game for the first time or you're a seasoned veteran, you'll understand that industry knowledge is rapidly expanding with the advancements this industry makes, especially regarding carbide end mills.



Precision is everything in machining. Whether milling aluminum at 30,000 RPM or profiling titanium for microelectronics, your results are only as good as the tool you put into the spindle.



Over time, carbide end mills have become the industry standard, not just for their unmatched hardness and heat resistance, but because they do their job faster, cleaner, and longer than their counterparts.



Still, with so many different tool types, variations, geometries, sizes, and coatings to choose from, selecting the types of end mills for the job can be daunting, no matter your experience level.



If you ever find yourself googling terms like "how to choose best carbide end mill," you're not alone. In this guide, we'll break down:

• What carbide tools are
• Why they matter
• How to choose between types of end mills
• What separates a good choice from a poor one


Whether you're a seasoned programmer or you're just getting your feet wet, this guide is designed so you cut smarter the first time.



What Are Carbide Cutting Tools?

Carbide tools are made from cemented carbide- a blend of tungsten carbide particles and a cobalt binder. Compared to high-speed steel (HSS), a common second-choice alternative, carbide is significantly harder, more heat resistant, and maintains a tool's sharpness at much higher cutting speeds.



Why it matters:

• Harder = longer life: Carbide stays sharper for longer, especially in production settings
• Heat resistance: Carbide can make runs at higher RPMs without dulling its cutting edges
• Precision: Less tool deflection = tighter tolerances = extreme accuracy


That said, carbide does come with its pitfalls. Carbide is generally a brittle material, and dropping a carbide endmill can often end with chipping, especially around the cutting edges.



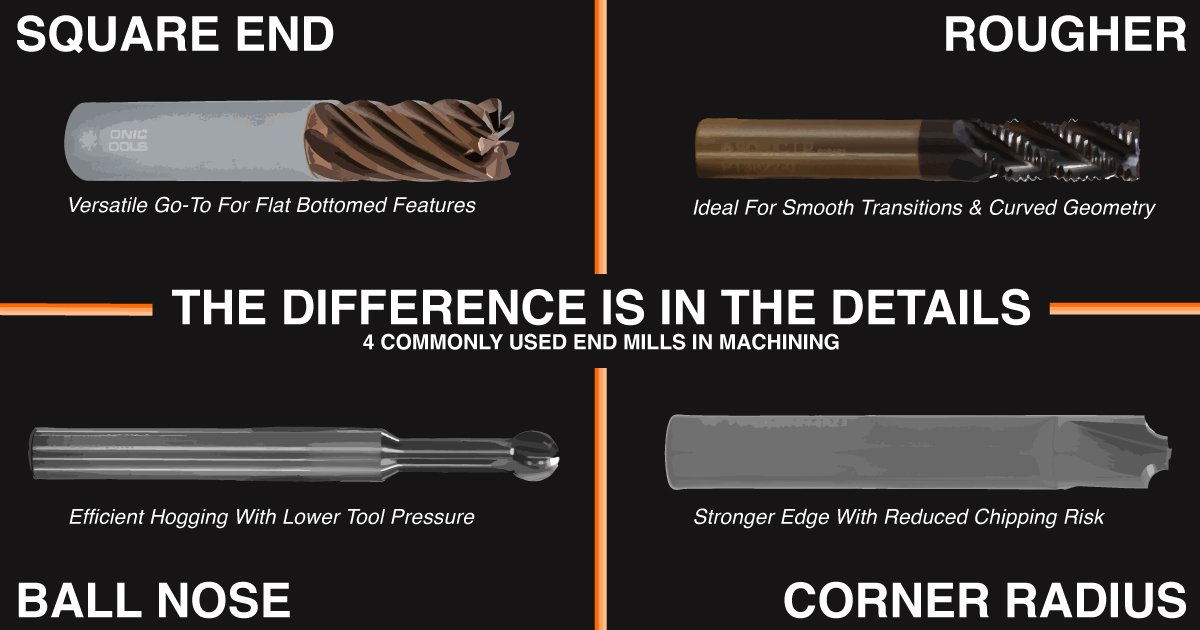

Types of Carbide End Mills

Different jobs necessitate different functions. A different function necessitates a different end mill geometry. Different geometries mean that if there's any variation in the machining you'll be doing, and I mean any at all, you'll build an end mill collection in no time.



Here's a breakdown of the most common types of endmills you'll see in the Sonic Tools lineup and when you should be pulling them out.



Square (Flat) End Mills

• Features a flat cutting tip with sharp 90-degree corners
• Versatile, go-to tools for slot, face, and pocket milling
• Produces clean pockets and shoulders with flat bottoms


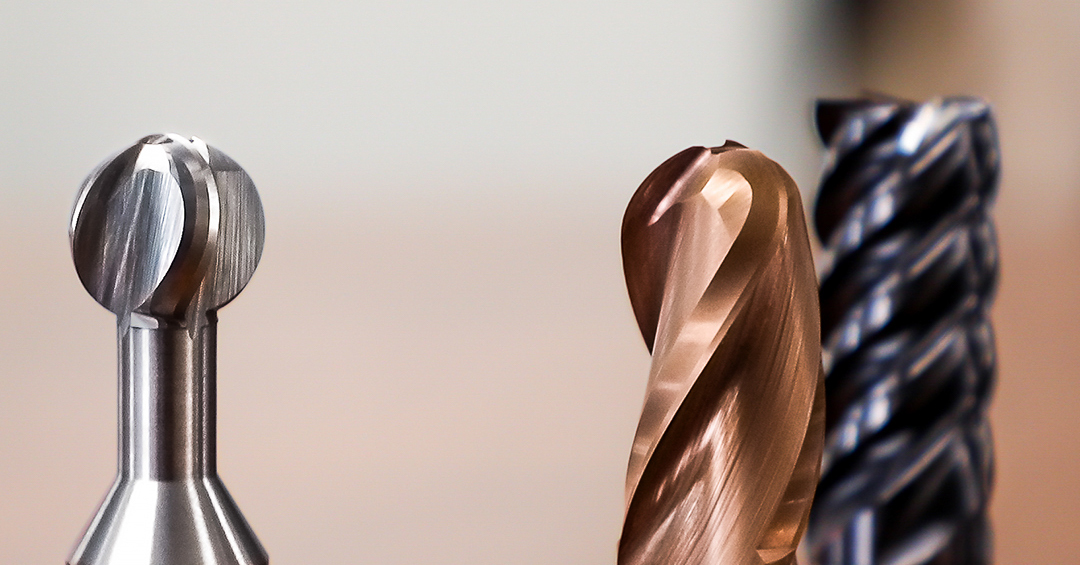

Ball Nose End Mills

• Features a rounded cutting tip that forms a hemisphere
• Ideal for 3D profiling, contouring, and mold-and-die work
• Especially useful when smooth surface transitions are required


Corner Radius (Bull Nose) End Mills

• Flat tip with slightly rounded corners for added edge strength
• Best for semi-finishing and reducing chipping
• Leaves a small fillet in internal corners to minimize stress concentrations


Roughers (Chipbreakers)

• Serrated or notched flute edges designed to break chips into smaller fragments
• Ideal for fast material removal
• Leaves a rough finish that typically requires a finishing pass


Specialty Cutters

• Keyseat Cutters: Look like tiny circular saws on a shank; used for side-slotting
• T-Slot Cutters: Small cutter head beneath a thin neck; ideal for undercuts
• Chamfer Mills: Cone-shaped with angled tip; used to bevel edges
• Dovetail Cutters: Undercutting tools with extreme profiles. Dovetail has trapezoidal angles
• Specialty cutters are typically utilized for features like angled slots, engravings, or edge breaks.



Key Geometry Factors

If you haven't already figured out that tool geometry is critical to the task at hand, we've got you covered. Being specific and thorough in tool selection determines whether or not your workpiece gets scrapped, and even tools that look identical from the eye test often cut very differently.

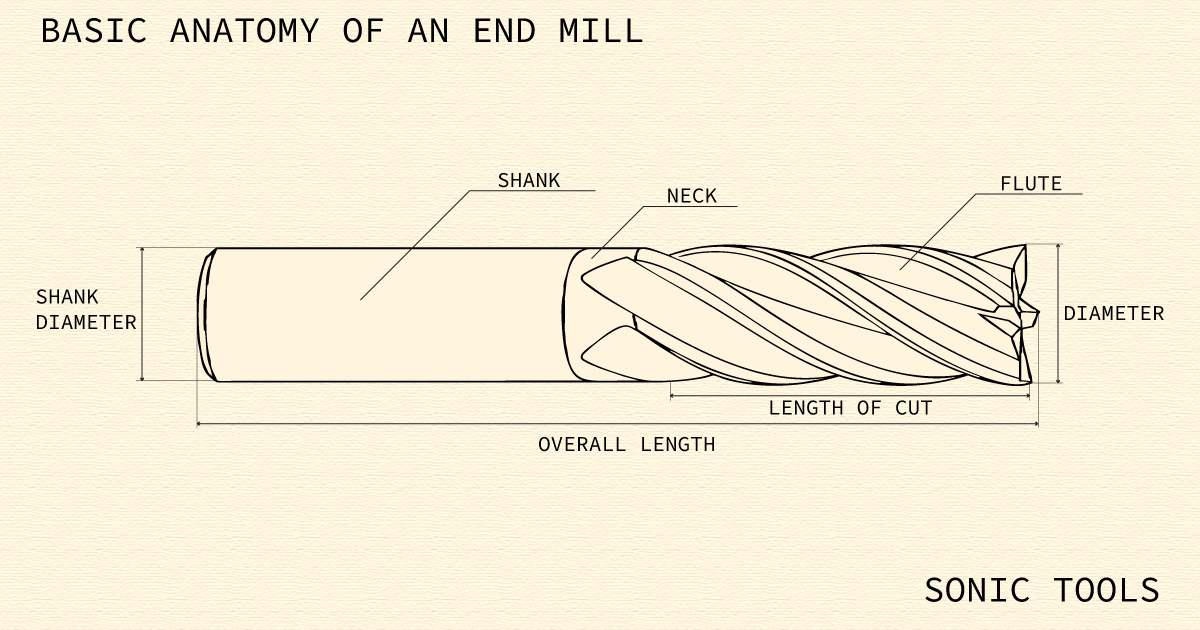

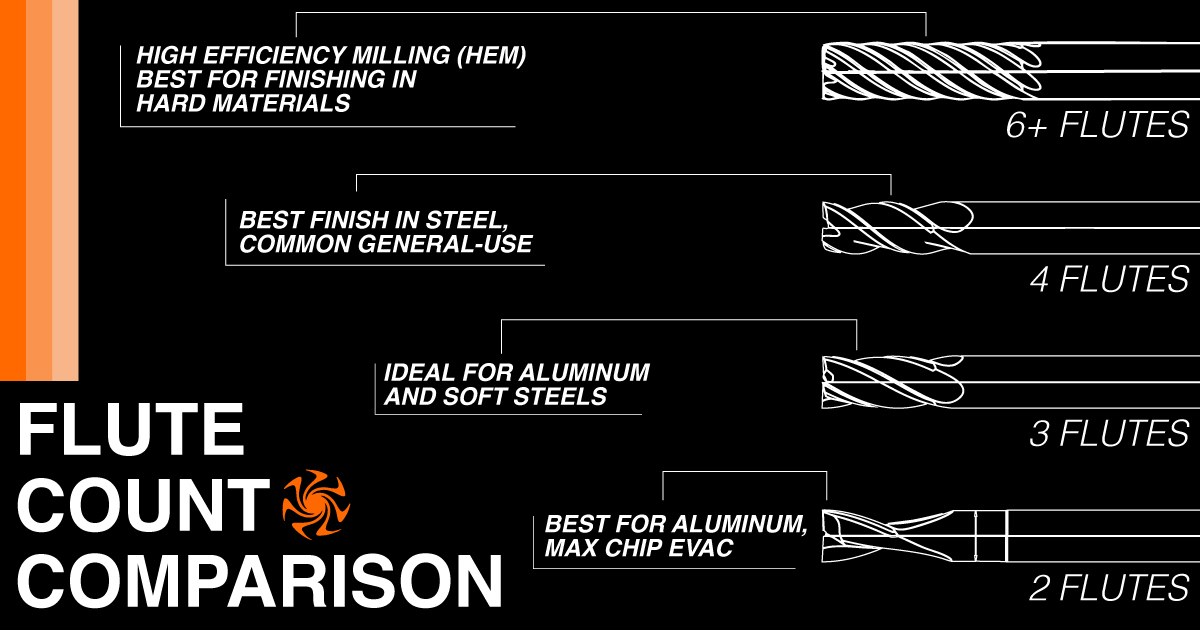

Flute Count

• 2-3 flutes: Best for cutting aluminum, softer metals, and aggressive roughing
• 4-5 flutes: Better for steels, finishing passes, and tighter tolerance applications
• 6-9 flutes: ideal for high-efficiency milling (HSM), semi-finishing, and finishing in harder materials. It offers excellent tool stability and superior surface finish, but requires higher RPM and lower chip load per tooth


Helix Angle

• Standard (~30°): General purpose
• High Helix (40-45): Aluminum and stainless steel. Clears chips faster and reduces built-up edge (BUE)
• Variable Helix: Reduces chatter and works well for high-speed steel and titanium machining


Coatings

• AlTiN / AlCrN: For steel, stainless, and high-temperature alloys
• TiB2: The types of end mills for aluminum typically feature TiB2, which prevents chip welding and BUE
• TiCN: A cost-effective upgrade for wear resistance
• TiAlSiN: Used for hardened steels and extreme heat


How Do Coatings Impact Performance?

Beyond tool life, coatings play a significant role in your job regarding chip evacuation and heat control. For example, TiB2-coated tools resist aluminum welding and reduce friction in the flute to clear chips considerably quicker.



Meanwhile, high-temperature coatings like AlTiN create a thermal barrier, pushing heat into the chip instead of the tool. Matching the right coating to the material doesn't just extend tool life but also protects the quality of your workpiece and machine setup.



What Happens If You Choose the Wrong Coating?

• Expect faster tool wear, surface finish degradation, chip welding (particularly with aluminum), and heat-induced failure
• Utilize our coating guide at soniclp.com to ensure material compatibility


Cutting Strategies and Entry Techniques

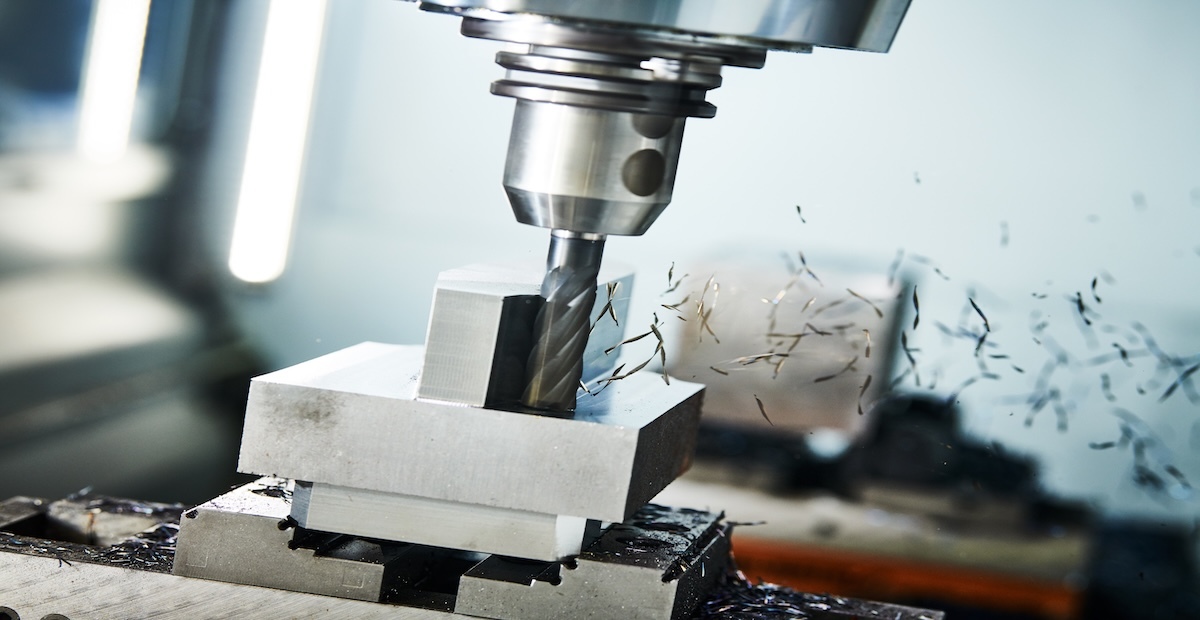

Pictured above: Side Milling Technique

• Plunge milling: Entering the workpiece vertically. Requires center-cutting tools
• Ramping: Angled entry into the workpiece. Useful for shallow pockets and thin parts
• Helical interpolation: Spiral down into a hole. Gentle on tools and workpieces
• Side milling (slotting/pocketing): Standard horizontal passes. Match flute count to chip load
• Trochoidal milling: Advanced high-efficiency milling (HEM) strategy using circular toolpaths to manage heat and chip load


Center-Cutting vs. Non-Center-Cutting


• Center-cutting end mills have flutes that meet at the tip, allowing them to mill directly downwards (plunge), ramp into a cut diagonally, or spiral into a pocket (helical entry)
• Non-center cut tools must enter from the side of the workpiece, as trying to plunge with one will snap the tool


Tool Deflection and Tolerance

Even the most precise tool in your arsenal can underperform if the setup causes deflection. Tool deflection happens when the cutter bends slightly during machining, especially when using long-reach tools, high stick-out, or aggressive stepovers.



This deflection results in poor surface finish, dimensional inaccuracy, and premature wear. The best way to minimize deflection is to always use the shortest and most rigid tool possible for the job. Oh, and don't forget to adjust those speeds and feeds accordingly.



Looking for the right tool now? Explore Sonic Tools' carbide end mills by material and coating type.

How to Choose the Right Tool

Choosing the right tool the first time saves everybody from the headaches that come with incorrect selection later. Choosing the wrong tool for the job will waste your time, break your parts, and cost you or your company money.

Here's how to get it right the first time:

Match the Tool to the Material

• For aluminum work, use a 2-3 flute, high helix tool with a polished or TiB2 coating
• For steelwork, use a 4-5 flute, standard helix tool with an AlTiN or AlCrN coating
• Use a 3-4 flute tool with sharp edge geometry and a TiCN or AlTiN coating for stainless work
• For working with Titanium and/or Inconel, use a tool with a heat-resistant coating, a strong edge, and rigid toolpaths
• For working with composites or plastics, use an O-flute or a single-flute cutter

Factor in Your Setup

• Machine power/RPM: Carbide shines brightest at high speeds. Don't choke it
• Rigidity: If your setup has flex, reduce tool diameter, stickout, and cut depth
• Tool Length: Use the shortest tool available that still reaches
• Consider adaptive toolpaths (HEM): When used correctly, more flutes + lower radial engagement = higher MMR

Don't Forget Tool Holding

After all, your end mill is only as good as how it's held. Poor tool holding leads to runout, vibration, and premature wear. Collet chucks are standard for general use, but high-performance machining may require shrink-fit or hydraulic holders for better concentricity and rigidity.

Always inspect your holders for wear and match them to the tolerance demands of your application!



Operation Type

• Roughing: Use a chipbreaker or rougher-style tools
• Finishing: High flute count, tight tolerances, sharp corners, or radii


Common Mistakes to Avoid

• Using steel-specific tools in aluminum (hello, chip weld!)
• Choosing too many flutes = clogged chips during evacuation

• lunging with non-center-cutting tools
• Running too slow = tool rubbing and unnecessary heat
• Excess stick out = chatter and poor finish
• Using diamond-coated tools on steel (good luck)


FAQs

Q: Can I use one tool for roughing and finishing?

A: Yes, but expect to compromise your finish and efficiency.



Q: What's the difference between a ball nose and a bull nose?

A: Ball nose = fully rounded tip. Bull nose = flat end with rounded corners.



Q: Why are my tools chipping?

A: It could be the wrong coating, flute count, or too much stick-out. Check rigidity and chip evacuation.



Q: What coatings should I use for aluminum?

A: TiB2 is ideal. Avoid AlTiN.



Q: How do I prevent chip welding in aluminum?

A: Use polished flutes and TiB2 coating to ensure efficient chip evacuation. Avoid overfeeding or running the tool too slowly.



Q: Why does my tool wear out so quickly in stainless steel?

A: Stainless is gummy and work-hardens. Use sharp tools and proper coating (TiCN or AlTiN); don't let the tool dwell.



Q: What flute count is typically found on the best end mills for finishing?

A: 4-6 flutes in steel/stainless, or 3 flutes in aluminum. Higher flute count improves finish but needs proper feed rates.



What to Do Next

Not sure where to start? Our team doesn't just sell you tools, we assist you in choosing the right one. Whether you're chasing a better finish, higher MRR, or fewer tool changes, we're here to make sure you're cutting with confidence.

Reach out to use or explore our most trusted end mills to get dialed in.

Contact Our Team

Browse Our End Mills by Application

Want to learn more? Be sure to check out our related guides and checklists not only to keep your tools in-check, but to keep your head in-check as well.

Tool Wear Checklist

Feed Rate Troubleshooting Guide for Aluminum Milling

Conclusion

Carbide tooling, while complex in engineering, is an easily achievable knowledge pillar in machining. Once you understand the types, geometries, and coatings, selecting the right tool for the job becomes second nature.



At Sonic Tools, we design each end mill with machinist logic in mind. Whether it's center cutting, material-specific, coating-optimized, and ready for real-world cutting conditions, we take pride in ensuring that our tools are for machinists - by machinists.



Need a reliable cutter that won't let you down? Explore our complete line of American-designed and manufactured carbide endmills and specialty carbide tooling at soniclp.com, or visit our speeds & feeds or coatings pages to dial in your setup correctly the first time.
