910 Series

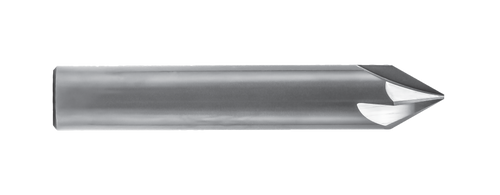

Tool 910i2006B

Sharp corners chip carbide. A 0.025" tip diameter requires edge geometry that can handle initial contact without fracturing under load.

The 910i2006B runs three flutes at 15 degrees per side.
AlTiN coating extends tool life in steel applications where heat buildup typically shortens cutting tool performance.
The coating also reduces aluminum adhesion during chamfer operations, which matters when surface finish requirements are tight.
Single-pass chamfer geometry produces consistent edge breaks across steel, aluminum, and most machinable metals.
The 15-degree angle is held to tight tolerances, maintaining chamfer consistency when it feeds into assembly fit or sealing surfaces.
Three flutes balance chip evacuation with tool strength at this tip diameter.
More flutes would weaken the carbide substrate at 0.025" while fewer would limit surface finish.
